Product Fact Sheet · Mercedes-Benz OM Engine Diagnostic Tool
$3,850
List Price · Worldwide Delivery Included
Your country-specific quote may be lower — never higher
12-Month Industrial Warranty

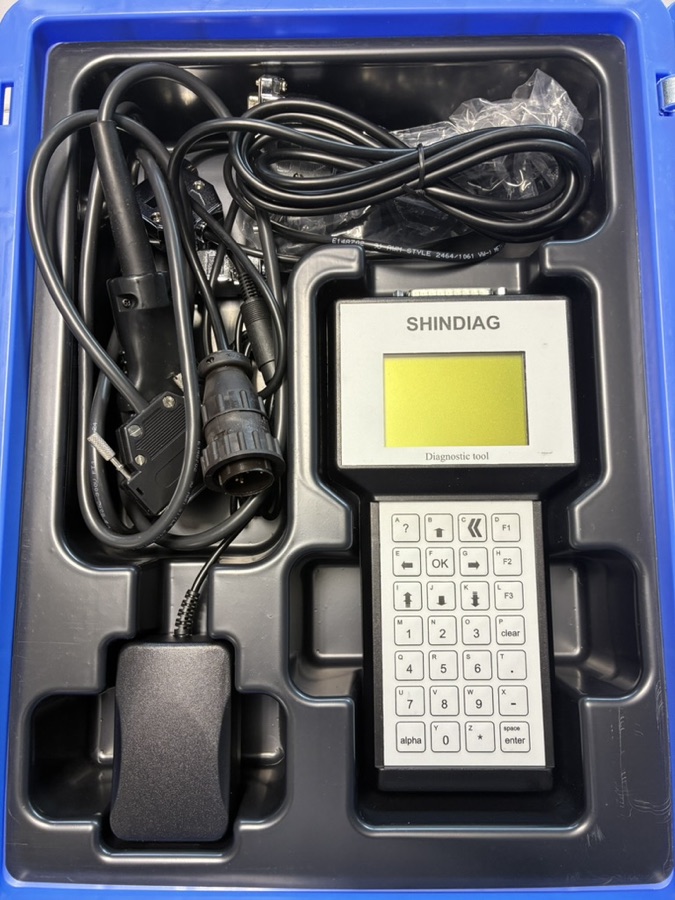

In the case: SHINDIAG handheld unit · 14-pin diagnostic cable (Mercedes-Benz round connector) · 16-pin OBDII cable (SAE J1939 — non-MB vehicles) · PC sync cable (RS232, D-Sub 9) · power supply · rugged transport case with foam inlay
Key Facts
| Interface | Standalone handheld — no laptop, no internet, no subscription required |
| Connection | 14-pin diagnostic socket · 16-pin OBDII (J1939) · RS232 / USB-CAN to PC |
| Display | Backlit LCD with adjustable contrast & brightness |
| Op. Temperature | 0 °C – 50 °C · Storage up to 80 °C |
| Power Supply | Vehicle 12 V – 24 V (min. 800 mA) via diagnostic socket |
| Delivery | Worldwide — shipping & export handling included; import charges itemized in your quote |
Supported Diagnostic Protocols
KWP2000 / J1939
K-Line
SAE J1939 HS-CAN
SAE J1587
UDS (250kbaud)
OBDII 16-pin
RS232 / USB-CAN
Free Running (FMR/EDC)
Capabilities
MiniDiag 2 Replacement: Direct successor to the legacy MiniDiag II (minidiag2) handheld — same standalone field approach, current hardware
Fault Code Memory: Read & delete active/stored fault codes across all connected control units (ADM, PLD, MR2, FMR, AFC, CPC, VCU)
Live Data / Actual Values: Real-time analogue & binary values — engine speed, temperatures, pressures, load status
Parameter Setting: Full parameter read/write with password-protected routines (Version B & C)
Accelerator Pedal Teaching: ADMx routine for proper pedal calibration after replacement
Software Flashing: Flash data sets & software to PLD, MR2, ADM, VCU control units
Parameter Conversion: Convert parameter sets for hardware replacement (unit pump exchange)
PC Sync (minidiag2 Assistant): Save, compare & manage parameter sets via RS232/USB-CAN
Primary Use Cases
1
Fleet Maintenance — MB Truck & Bus
OM 400/500/900 Series (8 variants): OM 457/460 LA, OM 501/502 LA, OM 904/906/924/926 LA — standalone at the vehicle, no shop network required
2
Mobile Cranes & Lifting Equipment
Cranes and industrial hoists powered by OM 900 Series engines — diagnosed on-site, no dealer required
3
Independent Service Workshops
Full diagnostic independence from OEM dealer network — read, set & flash without Star Diagnosis®
4
Field & Remote Operations
Zero internet dependency — ideal for mining, construction, oil & gas sites with no connectivity
5
Control Unit Replacement & Commissioning
Parameter conversion & software flashing after ECU swap — ADM, PLD, MR2, VCU, CPC
